Input Thickness Record

Allows user to input Thickness Record for an equipment.

Thickness data for an equipment can be entered only after Thickness location(s) of an Equipment is added. To add new Thickness location(s), please see "Add New Thickness Location of an Equipment" under Equipment.

Please note this feature may not be available for all equipment. Also note that all fields marked with (*) must be filled out.

1. Click on PM tab from the left menu.

2. Click on the Thickness tab from the top menu.


3. Click on the Thickness Input on the upper right corner of the screen.

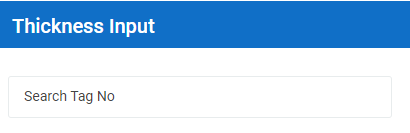

4. Search for the equipment tag that you wish to input the Thickness. You can input a sub-string of the tag number instead of the full tag number, i.e. you can input 101 to locate a tag number A-101. Hit "Enter" to invoke the search. "No Thickness Location Found" message will appear if you seached for equipment without thickness.

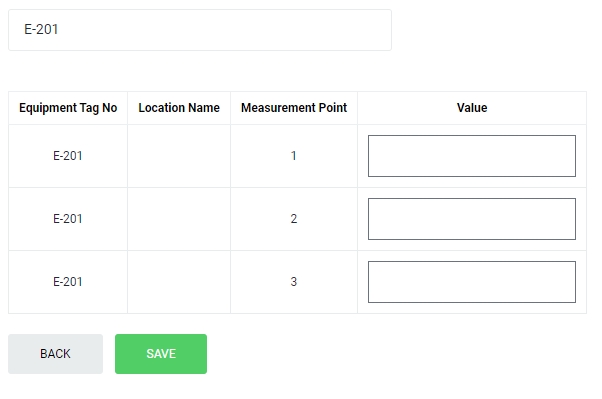

5. Input the thickness value for each measurement point of the equipment. All fields are mandatory.


6. Click Save to save the Thickness Record.
