Add New Thickness Location of Piping

Allows user to add new Thickness Location of Piping in M-DB. Please note that Thickness data for Piping can be entered only after location is defined.

  1. Click on the Piping tab from the left menu.

  2. Select the correct plant information from the drop down list and input the tag number that you are searching for. You can input a sub-string of the tag number instead of the full tag number, i.e. you can input 101 to locate a tag number A-101. Hit "Enter" to invoke the search. You can add filter by choosing the Grading from the dropdown list.

  3. All relevant matches will be displayed in the resultant table. You can click on the header to arrange the data in ascending or descending order.

  4. Click on the ID Number of the Piping you wish to Add Thickness Location.

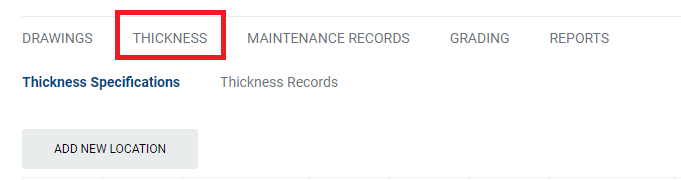

  5. Click on the Thickness tab in the middle of the screen.

  6. Under Thickness Specifications tab, Click on Add New Location

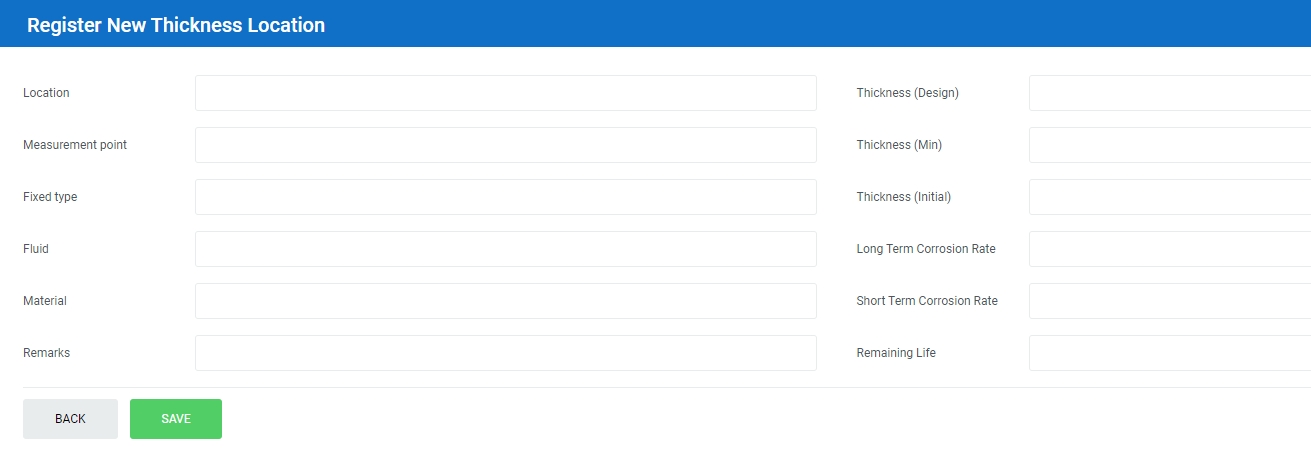

  7. Input the New Thickness Location information in the relevant fields. Click on Save to Add the New Thickness Location.
