View/Input Thickness Records of Piping
Allows user to input or view Thickness records of Piping in M-DB. Please note that Thickness data for Piping can be entered only after location is defined.
Click on the Piping tab from the left menu.
Select the correct plant information from the drop down list and input the tag number that you are searching for. You can input a sub-string of the tag number instead of the full tag number, i.e. you can input 101 to locate a tag number A-101. Hit "Enter" to invoke the search. You can add filter by choosing the Grading from the dropdown list.
All relevant matches will be displayed in the resultant table. You can click on the header to arrange the data in ascending or descending order.
Click on the ID Number of the Piping you wish to view.

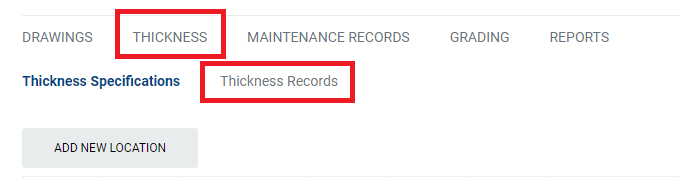

Click on the Thickness tab in the middle of the screen.

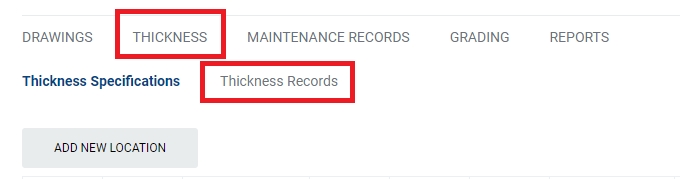

To view Piping Thickness Records, click on Thickness Records.

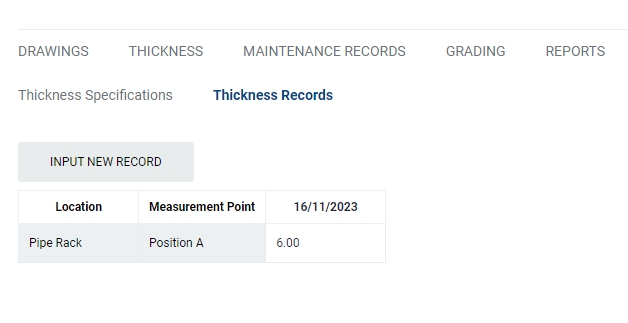

The past Thickness records will be displayed. To input new record, click on Input New Record

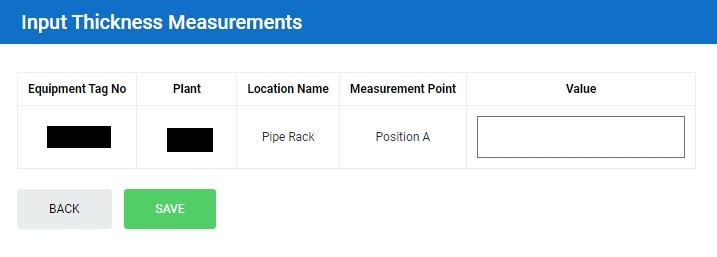

Input the Thickness data for the location and click Save to save the Thickness Record.
