View/Edit Grading of Piping

Allows user to input or view Grading of Piping in M-DB.

  1. Click on the Piping tab from the left menu.

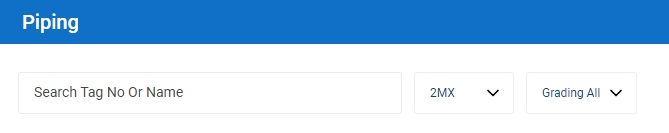

  2. Select the correct plant information from the drop down list and input the tag number that you are searching for. You can input a sub-string of the tag number instead of the full tag number, i.e. you can input 101 to locate a tag number A-101. Hit "Enter" to invoke the search. You can add filter by choosing the Grading from the dropdown list.

  3. All relevant matches will be displayed in the resultant table. You can click on the header to arrange the data in ascending or descending order.

  4. Click on the ID Number of the Piping you wish to view.

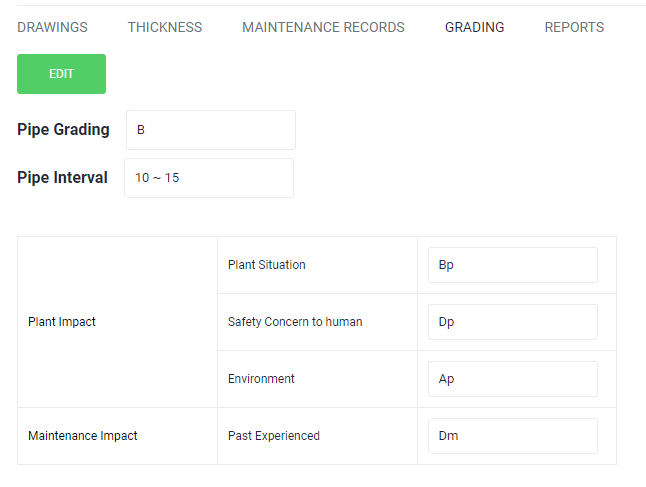

  5. To view Grading of the Piping, Click on Grading

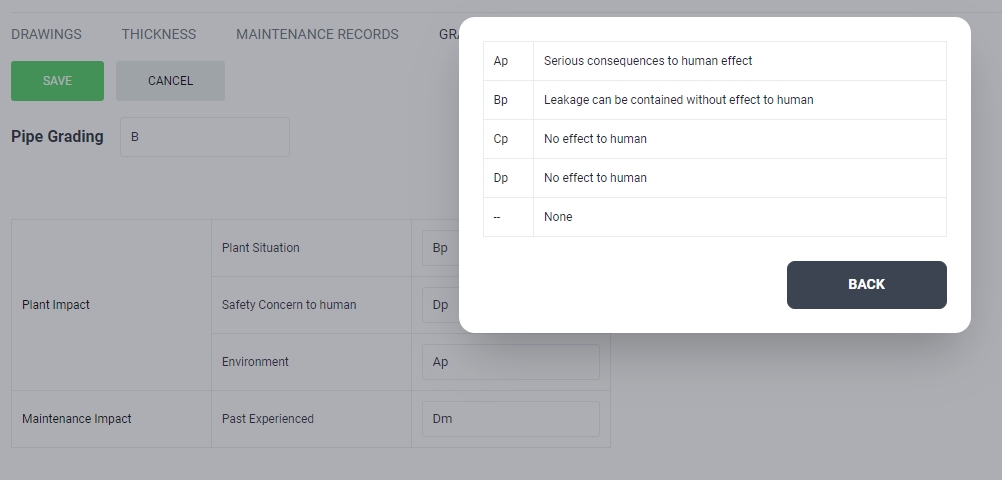

  6. To edit the Piping Grade, click on Edit and choose the Grade of the impact. Click on Save to save the new Grading.
